Refrigerated Truck Bodies ISO9000 Certified For Frozen Food Ice Cream Transportation

Character : Regardless of Engine of The Vehicle

Strength : Prolonged Life of Vehicle

Keep Cooling : 16 Hours

Charge : 8 Hours

Environmental : No Noise and No Vibration

Transport Package : Export Standard

Trademark : SNOWFALL

Origin : Guangzhou, China

HS Code : 8707909000

Supply Ability : 200 sets per month

Certification : ISO , SGS, CE

Service : OEM

Color : White or Customizable

Size : Customizable

Power : 380V or 220V

Refrigeration Gas : R404A

Customization : Available | Customized Request

Place of Origin : China

Brand Name : SNOWFALL

MOQ : 1set

Price : Negotiation

Packaging Details : flat pack

Delivery Time : 10 days

Contact Now

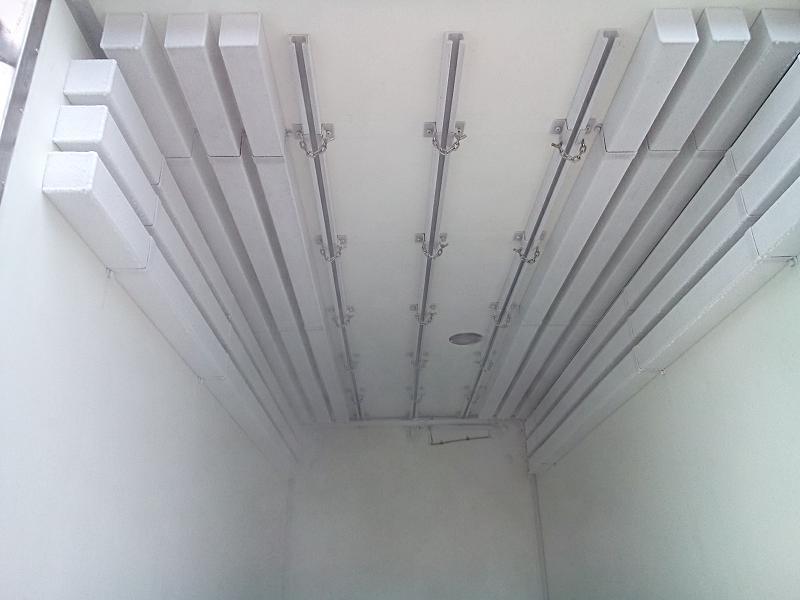

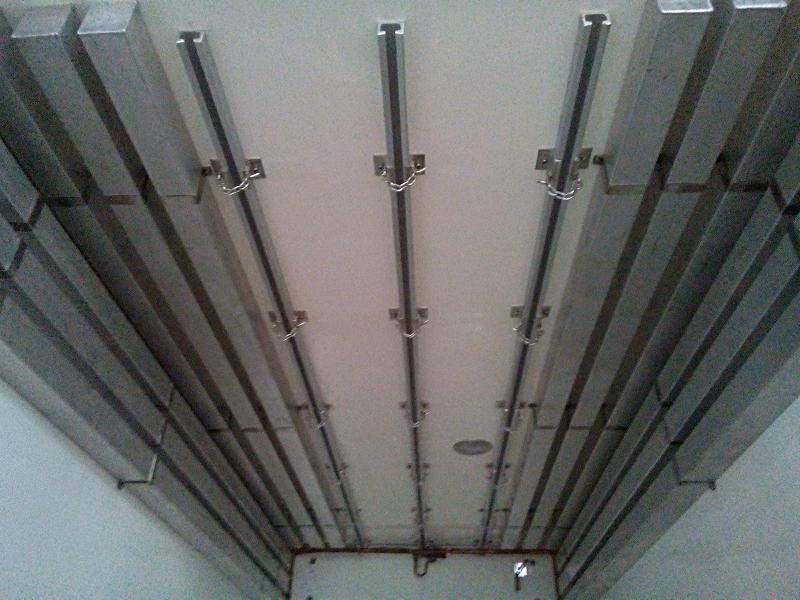

Eutectic cold bar system truck body

Eutectic cold bar system is widely used in Europe with advantages on the transportations of frozen food in a way to prolonged life of vehicle, all by using the power of electricity instead of truck engine.
It consists of compressor, condenser, control box and eutectic(freezing)bar.

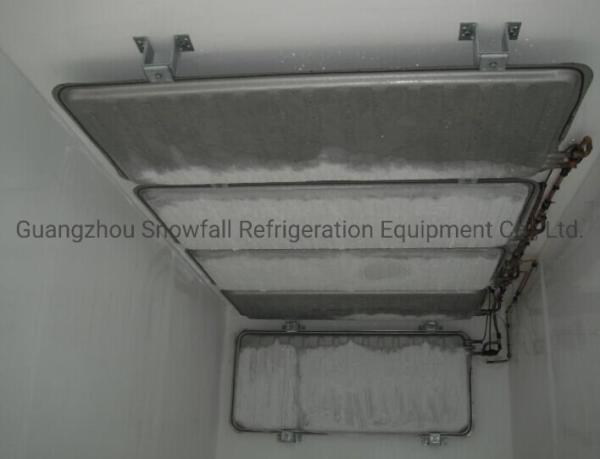

This is a new concept refrigerator top which maintains cold for a long time by creaing latent heat when dissolving the fluid slowly after freezing (solidification) the fluid accumulated on the freezing plateat certain temprature.
It has a freezing method in which we accumulate the cold on freezing plate by operating refrigerator at night and we can keep products cold during day time by using the cold accumulated.
Features
-It can improve the perfomance of the vehicle because power is 380V(220V) which is regardless of engine of the vehicle.
-It's cooling temperature is -40°C so that it allows to keep frozen food perfectly as it can maintain constant temperature of -25°C for 16 hours.
-It gives pleasant trnsportation condition (no noise and no vibration).
-It allows early cooling operation as you can keep frozen products in the vehicle and it allows increasing product selling time.
-There are less mechanical problems because it operates with no relation with vehicle engine as Eutectic Cold Top is completely disconnected with the vehicle.

Rest assure that our products are high quality best price and reliable.Our products have been exported to many countries for years and enjoyed great reputation .
Refrigerated Truck Bodies ISO9000 Certified For Frozen Food Ice Cream Transportation
Refrigerated Truck Bodies ISO9000 Certified For Frozen Food Ice Cream TransportationRefrigerated Truck Bodies ISO9000 Certified For Frozen Food Ice Cream Transportation
Refrigerated Truck Bodies ISO9000 Certified For Frozen Food Ice Cream Transportation

Vehicle Truck body size Condensing unit Electric Compressor Eutectic plate(stainless steel) Freeze capacity(kcal) Refrigeration gas
Size(mm):W560*L1250*T50
L*W*H(mm) Front mount Size(mm):W560*L1550*T50 (eutectic plate with solution at -33 °C )
1.0t 3160*1740*1650 3 HP 3pole 380v Copeland scroll type 5 pcs 1890kcal*5pcs=9450kcal R404A 3.0kg charge
50hz:2.2w
2.5t 4380*2000*1920 5 HP 3pole 380v 8 pcs 1890kcal*8pcs=15120kcal R404A 4.5kg charge
50hz:2.2w
3.5t 4800*2000*2000 5 HP 3pole 380v 9 pcs 1890kcal*9pcs=17010kcal R404A 4.5kg charge
50hz:2.2w
5.0t 6250*2450*2300 5 HP 3pole 380v 11 pcs 1890kcal*11pcs=20790kcal R404A 4.5kg charge
50hz:2.2w
8.0t 7500*2500*2300 5 HP 3pole 380v 13 pcs 1890kcal*13pcs=24570kcal R404A 4.5kg charge
50hz:2.2w
11.0t 9150*2500*2250 7.5 HP 3pole 380v 15 pcs 1890kcal*15pcs=28350kcal R404A 6.0kg charge
50hz:2.2w
